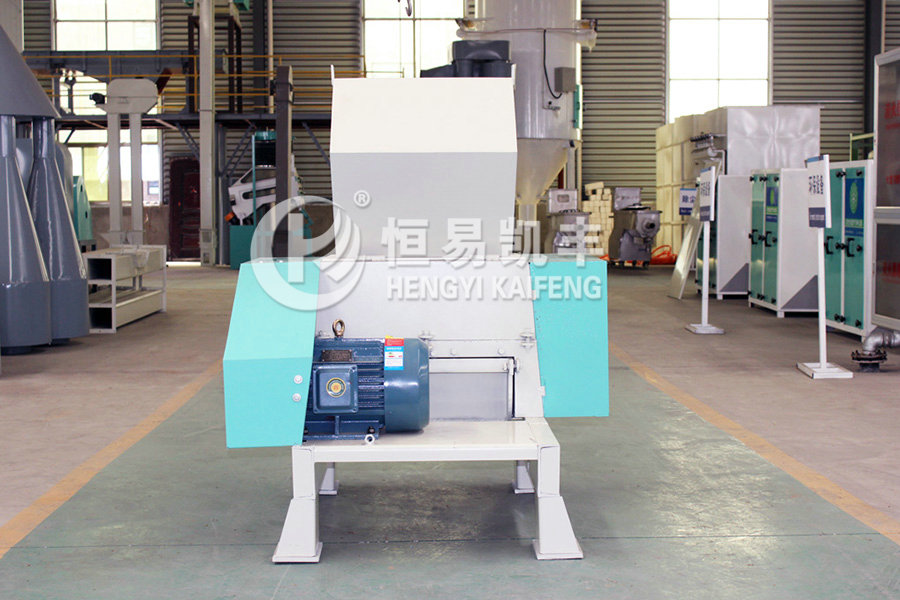

Knife crusher
PC series knife crusher is mainly used for strong crushing of materials. It is mainly used for crushing materials with high toughness and strength in activated carbon, grain and wood factories.
1. All blades are made of imported alloy steel with long service life;
2. Suitable for recycling and crushing of various activated carbon, shell, wood, plastic and metal;
3. Separate design, easy to repair and clean;
4. The motor is equipped with overload protection device and power interlock protection system to ensure safe operation;
5. Compact and durable structure, beautiful appearance design, sound insulation material, low noise.
| 参数 parameter 型号 Model | PC200 | PC300 | PC400 | PC500 | PC600 | PC800 | PC1000 |
| 破碎室口径（mm） Size of crushing room | 250/200 | 300/200 | 400/260 | 500/350 | 600/400 | 800/500 | 1000/600 |
| 旋转刀转速（r/min） Speed of rotary blade | 700 | 650 | 520 | 520 | 580 | 500 | 500 |
| 旋转刀直径（mm） Diameter of rotary blade | Φ200 | Φ320 | Φ320 | Φ400 | Φ500 | Φ600 | Φ560 |
| 破碎能力（Kg/h–） Crush ability | 50-110 | 200-250 | 300-450 | 350-450 | 350-480 | 400-500 | 600-800 |
| 电机功率（Kw） Power of motor | 4 | 5.5 | 7.5 | 7.5 | 11 | 11-22 | 28 |
| 固定刀数量（把） Quantity of fixed blade | 2 | 4 | 4 | 6 | 6 | 8 | 10 |
| 活动刀数量（把） Quantity of moving blade | 3 | 9 | 12 | 15 | 18 | 24 | 30 |
| 机长（mm） Length | 900 | 950 | 100 | 1300 | 1500 | 2200 | 2200 |
| 机宽（mm） Width | 660 | 820 | 900 | 1000 | 1000 | 1300 | 1800 |
| 机高（mm） Height | 1040 | 1250 | 1450 | 1500 | 1700 | 2000 | 2800 |
| 机重（Kg） Weight | 300 | 450 | 650 | 800 | 1000 | 1500 | 2000 |
